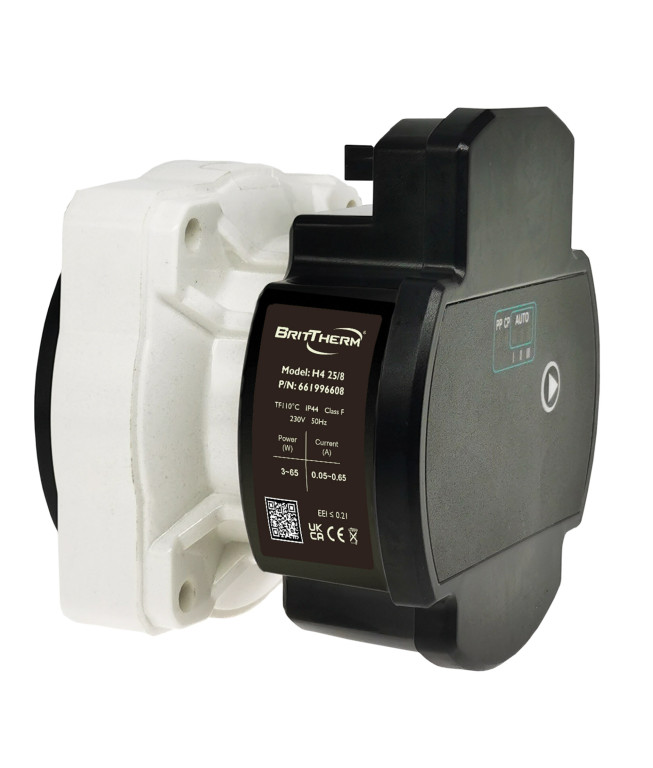

BRITTHERM H4 25/8 REPL AUTO PUMP HEAD WILO
661996608
£99.00 inc. VAT
£82.50 ex. VAT
Generally available in 2-3 days. However some products are currently on longer lead times.
-
The universal electric motor with remote electronic control of the rotor speed of the H4 Series (pump head) is designed to repair and replace motors in modern combination gas boilers with clockwise rotor rotation. The rotor speed of the H4 electric motors is remotely controlled using PWM technology, a low-voltage signal from the boiler's electronic board via a special control cable.
- PWM Controlled Motor Program. Maximum Head (Meters) 8
- Max Flow (m3/h) 3.6
- Power 3~65
- Connection Size 2”
- Energy Efficiency Index Rating (EEI) EEI≤ 0.21
- Maximum System Pressure (KPA)10 Bar
- Protection Class IP44
- Temperature ClassTF 95°C
- Insulation Class F
- Brand
- BritTherm Limited
- Guarantee
- 6 Years
- Category
- Replacement Automatic Pump Head For Wilo
- Range
- H4 SERIES
- Style
- Pumps head
- Product Code
- 661996608
- Dimensions
- 112 mm (L) X 155 mm (W) X 110 mm (D) X 110 mm (H)
- Main Material
- Bronze
- Main Colour
- Bronze
- Box Quantity
- 1
- Weight
- 1400 g
- Length
- 112 mm
- Width
- 155 mm
- Height
- 110 mm
- Depth
- 110 mm
- Max Pressure
- 10 Bar
- GTIN
- 5060756810488
-
