    • Plumbing Valves & Stopcocks Reliance RWC 1/2 MBSP x 15mm CPT15 Pressure & Temperature Relief Valve 10 Bar PTEM540005

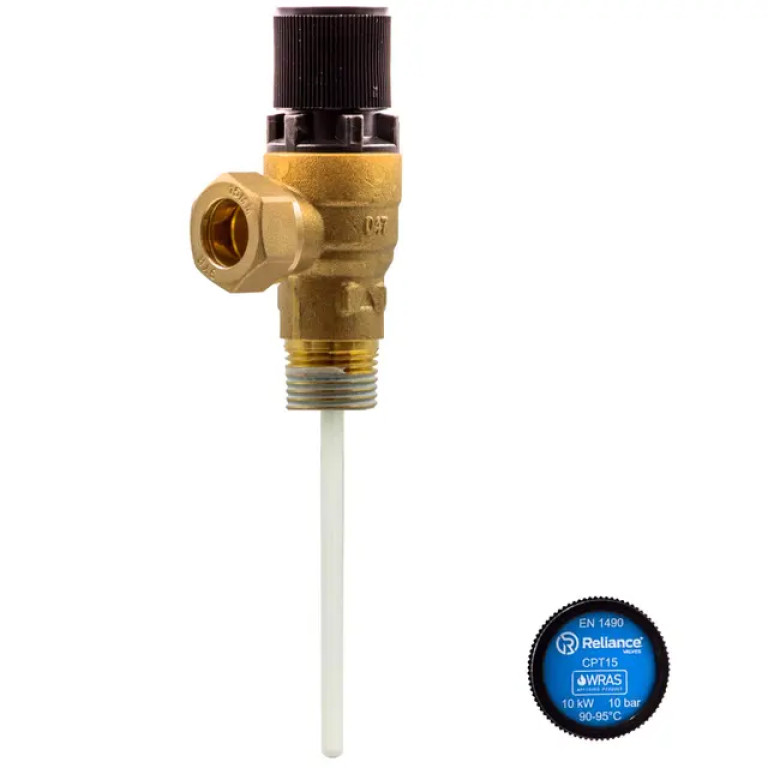

    Reliance RWC 1/2 MBSP x 15mm CPT15 Pressure & Temperature Relief Valve 10 Bar PTEM540005

    520-475-0767

    59% OFF

    £73.78

    £61.48

    £29.99 inc. VAT

    £24.99 ex. VAT

     10+ in stock for nationwide delivery

    • The Reliance CPT15 pressure and temperature relief valve has been designed to provide protection against over pressurization, which can occur within an unvented hot water system if the input temperature controls fail. The valve is designed to be fitted in the upper portion of the cylinder as this is where the hottest system temperatures will be found. If the system temperature rises beyond 95°C, the wax mixture within the element of the temperature probe will expand, causing the valve to lift off its seat and relieve water to waste. If the water pressure increases (without temperature increase) the valve will stay closed until the set pressure of the relief mechanism is reached, at which point the valve will open to relieve the excess pressure build-up.

      • Connection: 1/2" MBSP threaded (Inlet) x 15mm compression (Outlet)
      • Pressure Setting (Set & Locked): 10.0 Bar
      • Temperature Relief: 90-95°C
      • Discharge capacity: 10kW
      • Probe Length: 95mm
      • WRAS Approved
      • Replaces: TPR15
      Brand
      Reliance Water Controls
      Category
      Pressure & Temperature Relief Valve
      Product Code
      520-475-0767
      Main Material
      Brass
      Main Colour
      Brass
      Box Quantity
      1
      Width
      49 mm
      Height
      187 mm
      Depth
      31 mm
      Max Pressure
      10 Bar
      GTIN
      IPG1460000001
